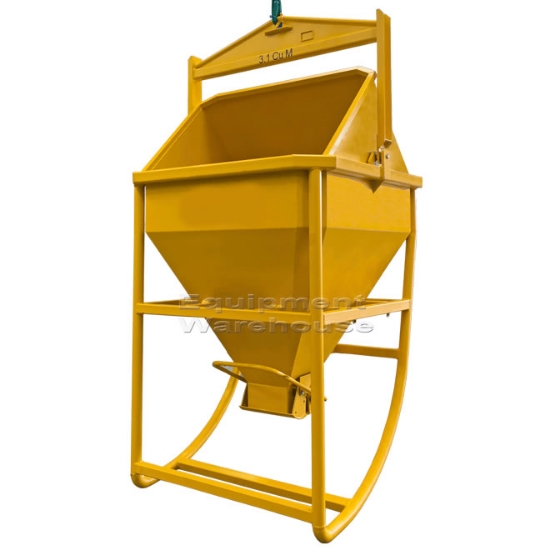

The heavy duty, roll-over style Concrete Kibble with Slide Valve is designed for the easy transfer of concrete on site by overhead crane. When filling, the kibble lays horizontally so it can sit lower than the concrete truck's chute, then reverts to a vertical position when lifted. Fitted with a lever actuated slide valve and lay-flat hose to regulate concrete flow safely from the side, this unit is ideal for filling wall cavities, columns and narrow formwork.
Features:
- Suits large applications with models available for up to 3cu.m capacity
- Roll-over (laydown) style allows filling from concrete dispensing chute
- Fitted with a lever operated 400mm x 400mm clamshell gate
- Removable concrete funnel with 2m lay-flat hose allows controlled flow when filling wall cavities, columns or narrow formwork
- Fork pockets fitted for transport around the work site
- Hydraulic Kibble Option available to remotely control kibble
- Enamel paint finish
Specifications:
- VolumeCapacity (cu.m): 3.0
- WorkingLoad Limit (kg) 6850
- FillingHeight (mm) 1240
- Fork Pocket Size (mm) 190 x 90
- Pocket Centres (mm) 700
- Unit Weight (kg) 1310
- Lay Flat Hose Dimensions (mm) 200 diameter x 2000
