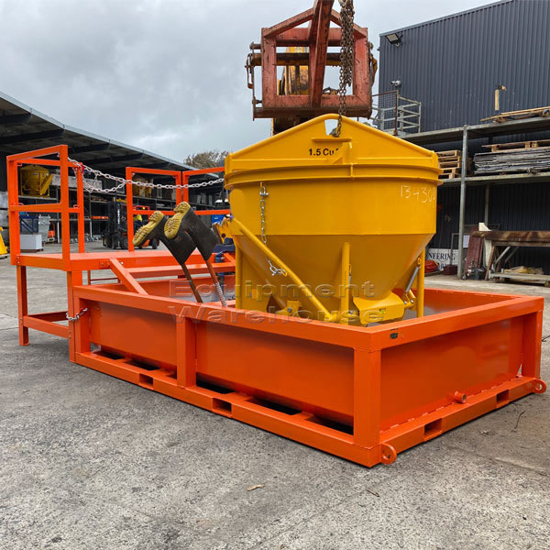

Concrete Kibble Washout Unit

Concrete Kibble Washout Unit

Concrete Kibble Washout Unit is a safe and convenient solution for washing out concrete kibbles and other equipment onsite.  This EPA friendly unit is designed to   limit environmental damage and ensure longlife of concrete equipment by preventing concrete build up.

Description:

• Allows EPA compliant washout of concrete equipment onsite
• Frame suits use with CKM & CKRO Concrete Kibbles
• Raised platform deck allows easy access to wash out inside of kibble
• Wastewater in skip bin can be pumped into a filtration unit  for treatment or emptied into a washout pit
• Fork pockets and crane lugs fitted to the skip bin allow easy relocation around the site
• Enamel paint finish

Specification:

• Skip Bin WLL : 5000kg
• Skip Bin Capacity : 3.5 cu.m
• Skip Bin Dimensions : 2150 (w) x 3370(l) x 700(h) mm
• Skip Bin Unit Weight : 880kg
• Skip Bin Pocket Size : 190 x 80mm
• Skip Bin Pocket Centres : 900mm
• Platform Dimensions : 2272 (w) x 2767 (l) x 1940(h) mm
• Platform Unit Weight : 350kg
• Combined Unit Overall Dimensions    : 2272 (w) x 4745 (l) x 1940(h) mm
• Combined Unit Weight  : 1230kg
